Original price was: $450.00.$437.00Current price is: $437.00.

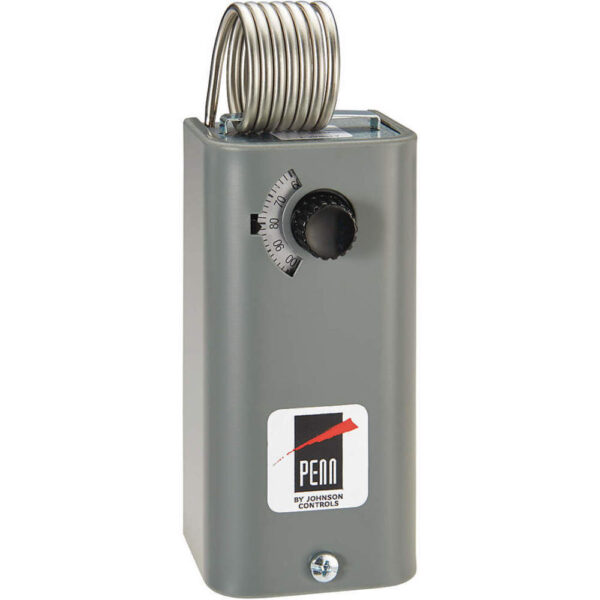

The Johnson Controls A18BAF-1C Penn thermostat is equipped with an air coil sensing element, making it an ideal choice for controlling the temperature in various environments such as buildings, central heating units, and air conditioners. This versatile thermal unit effectively regulates the heat or coolness in a specific area to achieve a desired temperature. Its advanced sensing capabilities make it particularly useful in maintaining optimal temperature levels in settings such as offices, hospitals, and restaurants.
Item | Line Volt Mechanical Tstat |
Capillary Length | 2-1/4″ |
Color | Gray |
Contact Rating Resistive @ 120V | 10A |
Contact Rating Resistive @ 240V | 10A |
Contact Rating Resistive @ 277V | 10A |
Control Range | 30 Degrees to 110 Degrees F |
Depth | 1-13/16″ |
Differential | 1.5 Degrees F |
Enclosure Type | Galvanized/Steel |
Full Load Amps @ 120V | 15A |
Full Load Amps @ 240VAC | 3A |
Height | 4 13/32″ |
Inductive Amps @ 120V | 6A |
Inductive Amps @ 240V | 3A |
Locked Rotor Amps @ 120V | 36A |
Locked Rotor Amps @ 240V | 18A |
Mounting Type | Flat Surface |
Number of Switches | 1 |
Pilot Duty Contacts (VA) | 125VA |
Remote Sensing Capability | No |
Resistive Amps @ 208VAC | 10A |
Sensing Bulb Length | 1-3/8″ |
Sensor Type | Coil |
Switch Action | Open/Close on Rise |
Switch Type | SPDT |
Voltage | 24 to 277 VAC |
Width | 2.156″ |
Ship weight (kg) | 0.39 |
Ship height (cm) | 6.35 |
Ship length (cm) | 15.24 |
Ship width (cm) | 6.35 |
Country of Origin | MX |
Weight | 0.39 kg |
---|---|
Dimensions | 15.24 × 6.35 × 6.35 cm |
