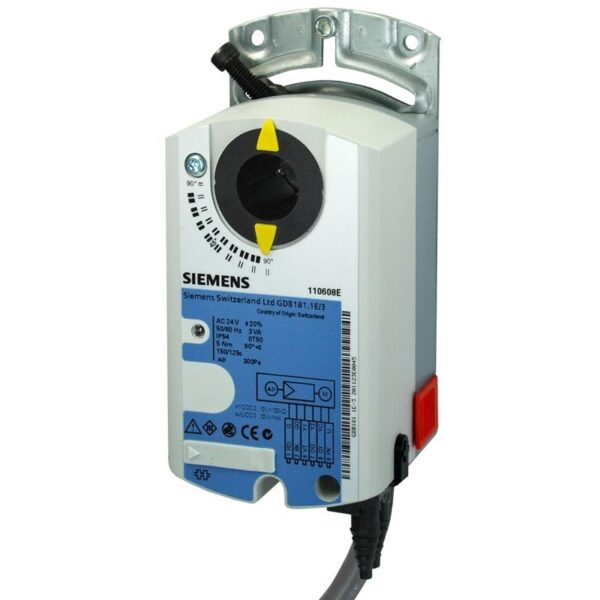

Siemens 5Nm 24V 0-10V Control
Original price was: $245.00.$232.75Current price is: $232.75.
Rotary air damper actuator, AC/DC 24 V, DC 0/2…10 V, 5 Nm, 150 s
- For shaft dia. 8..16 mm, square 6…12 mm, min. shaft length 30 mm
- With position indication and adjustable mechanical limit stop
- Button for disengaging the gear train to enable manual override
- With base made of steel, plastic housing and 0.9 m connecting cable
SKU: GDB161.1E
Categories: Damper Actuators, Siemens
Tags: Siemens Building Technologies, Standard Damper Actuator
- Electronic motor driven actuators for open-close, three-position and modulating control
- Nominal torque 5 Nm
- Operating voltage AC 24 V ~ / DC 24…48 V⎓ or AC 100…240 V ~
- Mechanically adjustable span between 0…90°
- Pre-wired with 0.9 m long connection cables
- Type-specific variations with adjustable offset and span for the positioning signal
- Position indication: mechanical and electrical
- Feedback potentiometer
- Self-adaption of rotational angle range and adjustable auxiliary switches for supplementary functions
No more offers for this product!
